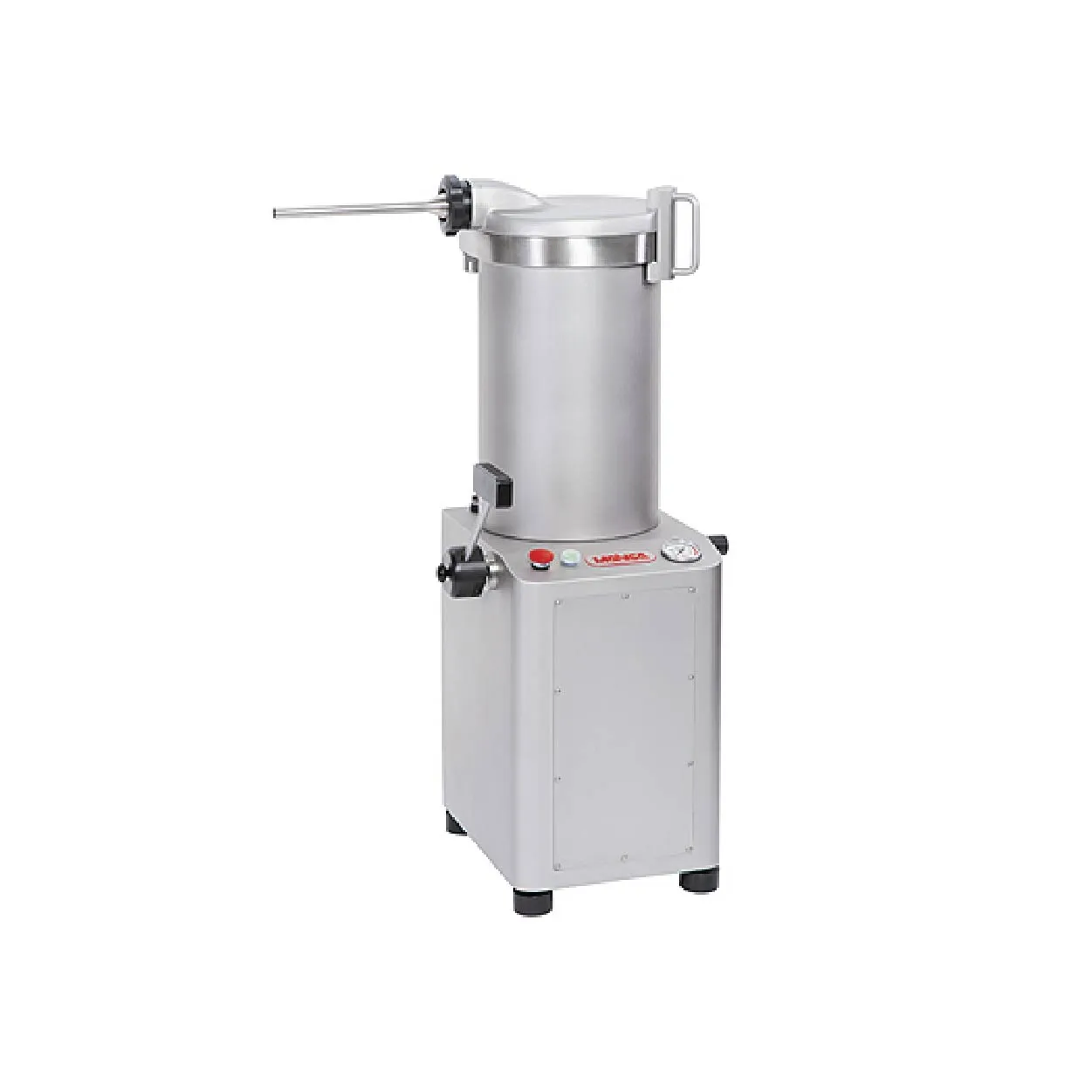

Hydraulic filler

Strong and reliable heavy duty model ideal for medium productions.

Capacity of cylinder in litres: 30 l.
Capacity of cylinder in Kg: ± 28 Kg.

Motors:
Three phase of 1.75 HP / 1.29 kW (230-400V 50Hz / 220V 60Hz)
Single phase of 2.5 HP / 1.84 kW (230V 50Hz / 110-220V 60 Hz)

All single phase models have as standard a cooling fan kit to reduce heat transfer. Three phase models can also have this kit as an option.

Dimensions of base: 35 x 45 cm

Construction: Made of stainless steel 18/10 including cylinder base except the lid and piston which are in anodized aluminium. Lid cylinder and meat piston can optionally be made of stainless steel 18/10.
