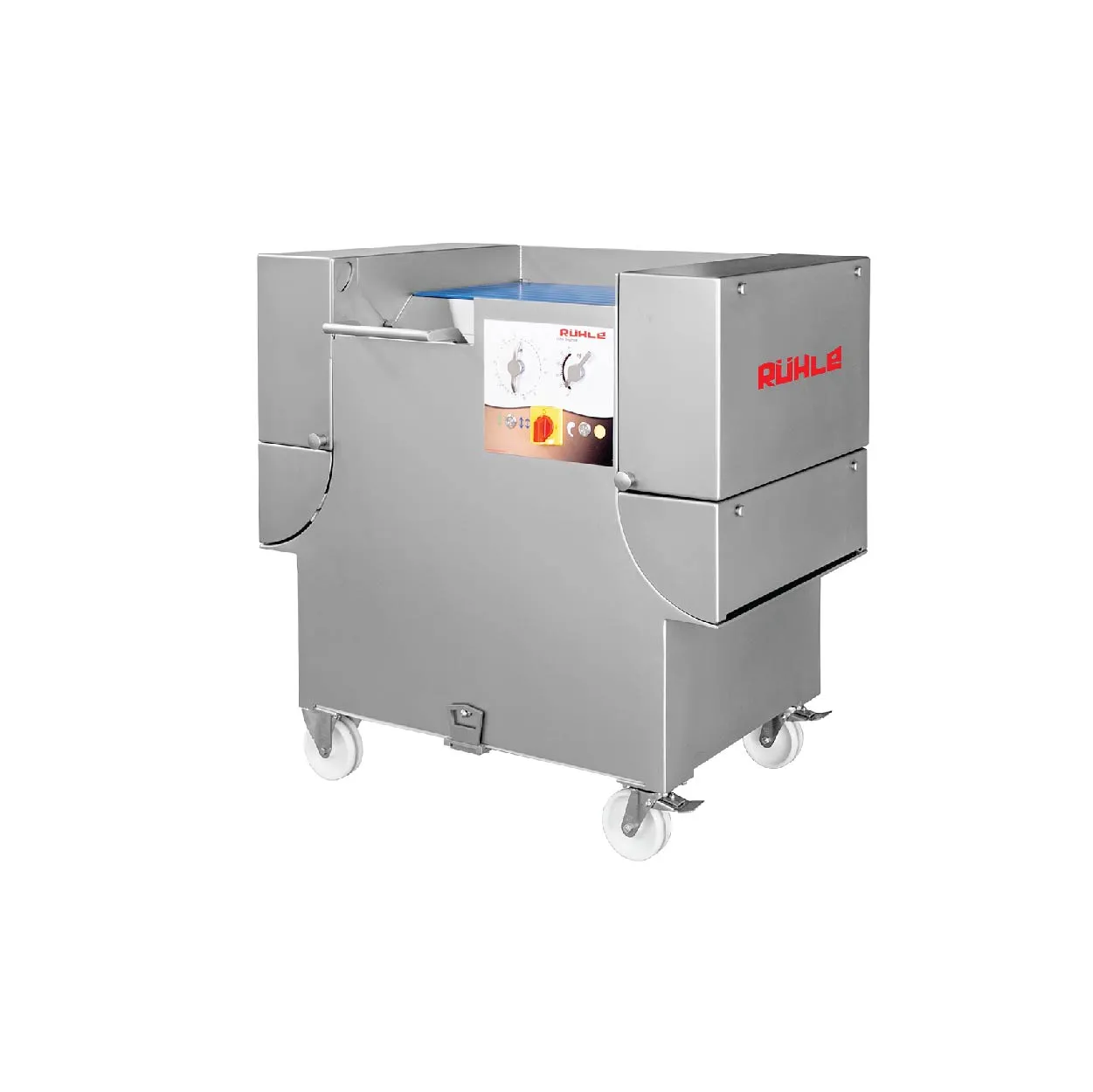

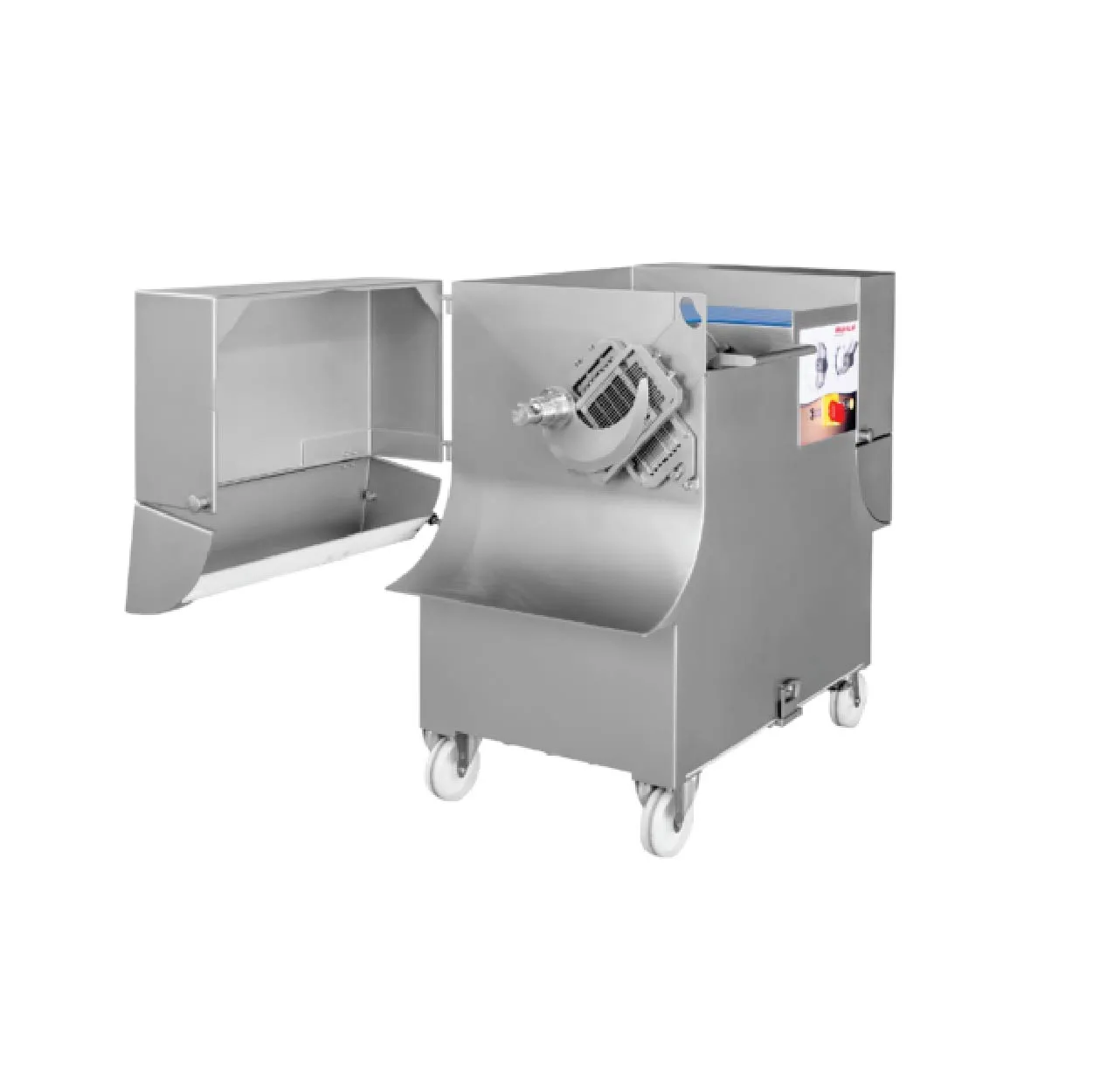

Original AR 10 At a glance Angled shaft Lateral pre-compacting Stabilisers for sliced goods Werkzeugmagazin Pressure – sensitive pre-compacting Multiplex – grid on roller bearings
Machine Length: 1,070 – 1,900 mm
Machine Width: 690 – 890 mm
Machine Height: 1,040 mm
Machine Weight: 245 kg
Connection Rating: 400 V, 3.8 kW, 16 A
Working Capacity: max. 1,700 kg/h
Chamber Length: 350 mm
Chamber/Pass-through Width: 100 mm
Chamber/Pass-through Height: 100 mm
Cutting Lengths: 0.5 – 60 mm
Slices: 200 per minute
Cutting Temperature: -5°C – +80°C
Standard Grid Sizes: 3, 5, 6, 8, 10, 12, 15, 16, 20, 24, 30, 50
| Year of Operation | 2021 |
| Project | Inlet Pipeline and Natural Gas Metering and Regulating Station Project for B.Grimm Power (Angthong) BPAT2 and BPAT3 |
| Location | Angthong |
| Project Principal | TRC Construction Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work for M/R Station Equipment ⮚ Equipment Supply for the completed M/R Station ⮚ Field Installation and Commissioning |
| Year of Operation | 2021 |
| Project | Inlet Pipeline and Natural Gas Metering and Regulating Station Project for Gateway City Industrial Estate |
| Location | Gateway City Industrial Estate, Chachoengsao |
| Project Principal | Kikuchi Industry (Thailand) Co., Ltd. |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work for M/R Station Equipment ⮚ Equipment Supply for the completed M/R Station ⮚ Field Installation and Commissioning |
| Year of Operation | 2023 |
| Project | Inlet Pipeline and Natural Gas Metering and Regulating Station Project for Nakhon Sawan Bio Complex (NSB Gate Station and MRS Nature Work) |
| Location | Nakhon Sawan |
| Project Principal | Siamraj Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work for M/R Station Equipment ⮚ Equipment Supply for the completed M/R Station ⮚ Field Installation and Commissioning |
| Year of Operation | 2023 |
| Project | Natural Gas Metering and Regulating Station Modification Project for G662R at Tha Luang Factory |
| Location | Saraburi |
| Project Principal | PTT Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work ⮚ Equipment Supply Pressure Regulator Valve (Size 2” ANSI300RF) – 2 Units ⮚ Field Installation, Tubing Work and Commissioning |
| Year of Operation | 2023 |
| Project | Natural Gas Metering and Regulating Station Project for Nutrix Public Co., Ltd. |
| Location | Chachoengsao |
| Project Principal | Kikuchi Industry (Thailand) Co., Ltd. |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work ⮚ Equipment Supply ⮚ Field Installation and Commissioning |
| Year of Operation | 2023 |
| Project | Natural Gas Metering and Regulating Station Modification Project for Bangchan General Assembly Co., Ltd. |
| Location | Samutprakarn |
| Project Principal | PTT Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work ⮚ Equipment Supply Turbine Gas Meter (Size DN80 G-250) – 1 Unit Pressure Safety Valve (Size 1/2” NPT) – 2 Units ⮚ Field Modification and Commissioning |
| Year of Operation | 2024 & 2025 |
| Project | Natural Gas Metering and Regulating Station Modification Project for Jaspal & Sons Co., Ltd. |
| Location | Samutprakarn |
| Project Principal | PTT Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work ⮚ Equipment Supply Turbine Gas Meter (Size DN80 G-250) – 1 Unit Pressure Regulator Valve with Built-in Shut-off Valve (Size 1” ANSI150RF) – 2 Units ⮚ Field Modification and Commissioning |
| Year of Operation | 2025 |
| Project | Natural Gas Metering and Regulating Station Modification Project for Meyer Aluminium (Thailand) Co., Ltd. |
| Location | Laem Chabang Industrial Estate, Chonburi |
| Project Principal | PTT Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work ⮚ Equipment Supply Safety Shut-off Valve (Size 1” ANSI150RF) – 2 Units ⮚ Piping Modification, Field Installation and Commissioning |
| Year of Operation | 2024 |
| Project | Natural Gas Metering and Regulating Station Modification Project of Bangchak Corporation Company Limited (BCP) |
| Location | Bangchak Power Plant, Bangkok |
| Project Principal | BSGF Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC ⮚ Engineering Work ⮚ Equipment Supply + Set Point Adjustment + Replacement ⮚ M/R Station Commissioning |
| Year of Operation | 2023 – 2024 |
| Project | GULF NRV1 (PTT SN10) Natural Gas Pipeline Subsidence Repair |
| Location | Nakhonratchasima |
| Project Principal | Gulf Energy Development Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPC ⮚ Ground investigation and assessment ⮚ Pipeline reinforcement and realignment ⮚ Restoration of affected area |
| Year of Operation | 2024 – 2025 |
| Project | PTT- Natural Gas Distribution Metering & Regulating Station Model 300/150-2-4-G250 for EA Bio Innovation Co., Ltd. |
| Location | Rayong |
| Project Principal | PTT Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC + HTLS + Government Permit Acquisition Flow Rate : 1.0 MMSCFD Pressure Rating : 300 PSIG Inlet / Outlet : 3” x 4” |
| Year of Operation | 2024 – 2025 |
| Project | PTT- Natural Gas Inlet Pipeline and Metering and Regulating Station to Nippon Steel Steel Processing (Thailand) Co., Ltd. (xTwo (2) Factory for South and North NSSPT) |
| Location | Rayong |
| Project Principal | PTT Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC + HTLS + Government Permit Acquisition Flow Rate : 0.71 MMSCFD Pressure Rating : 150 PSIG Inlet / Outlet : 2” x 4” 8” x 4” ANSI150 Hot Tap Line Stop Operation (2 Positions) |
| Year of Operation | 2022 |
| Project | Natural Gas Metering and Regulating Station Modification for IRPCCP Auxiliary Boiler |
| Location | Rayong |
| Project Principal | PTT Public Company Limited |
| EPC Contractor | Vicchi Engineering Company Limited |
| Scope of Work | Turnkey Project – EPCC + Government Permit Acquisition ⮚ Engineering Work ⮚ Equipment Supply Pressure Regulator Valve (Size 1” ANSI600RF) – 2 Units Safety Shut-off Valve (Size 3” ANSI600RF) – 4 Units ⮚ New Piping Fabrication ⮚ Field Modification and Commissioning ⮚ DoEB Permit for Modification |
